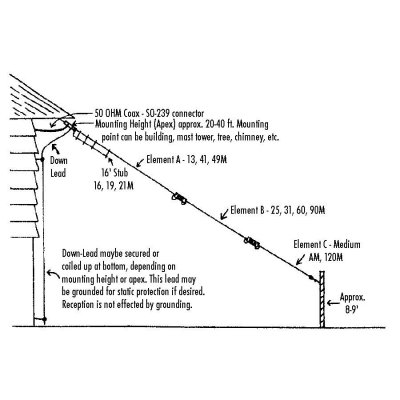

The Alpha Delta DX-SWL-S shortened version antenna offers exceptional features and performance! Hams have been using slopers for years because slopers offer some unique advantages not found in other antennas. Sloper (or slant) antennas require only one elevated support (25 feet (7.6 meters) or higher) while dipoles require two elevated supports.
The DX-SWL Sloper offers coverage of the covering the 90 through 13 meter bands.
The DX-SWL–S covers:
3.2-3.5 MHz 90 Meters
4.7-5.0 MHz 60 Meters
5.9-6.2 MHz 49 Meters
7.1-7.3 MHz 41 Meters
9.5-9.9 MHz 31 Meters
11.6-12 MHz 25 Meters
13.6-13.8 MHz 21 Meters
15.1-15.6 MHz 19 Meters
17.5-17.9 MHz 16 Meters
21.4-21.8 MHz 13 Meters
Instruction
